PROCEDURAL HEART SIMULATOR WITH LEAFLETS MOVEMENT FOR TRANSCATHETER TRICUSPID VALVE INTERVENTIONS
Procedural skills & imaging training. The simuSLICE platform simulators offer mechanical leaflets pulling movement

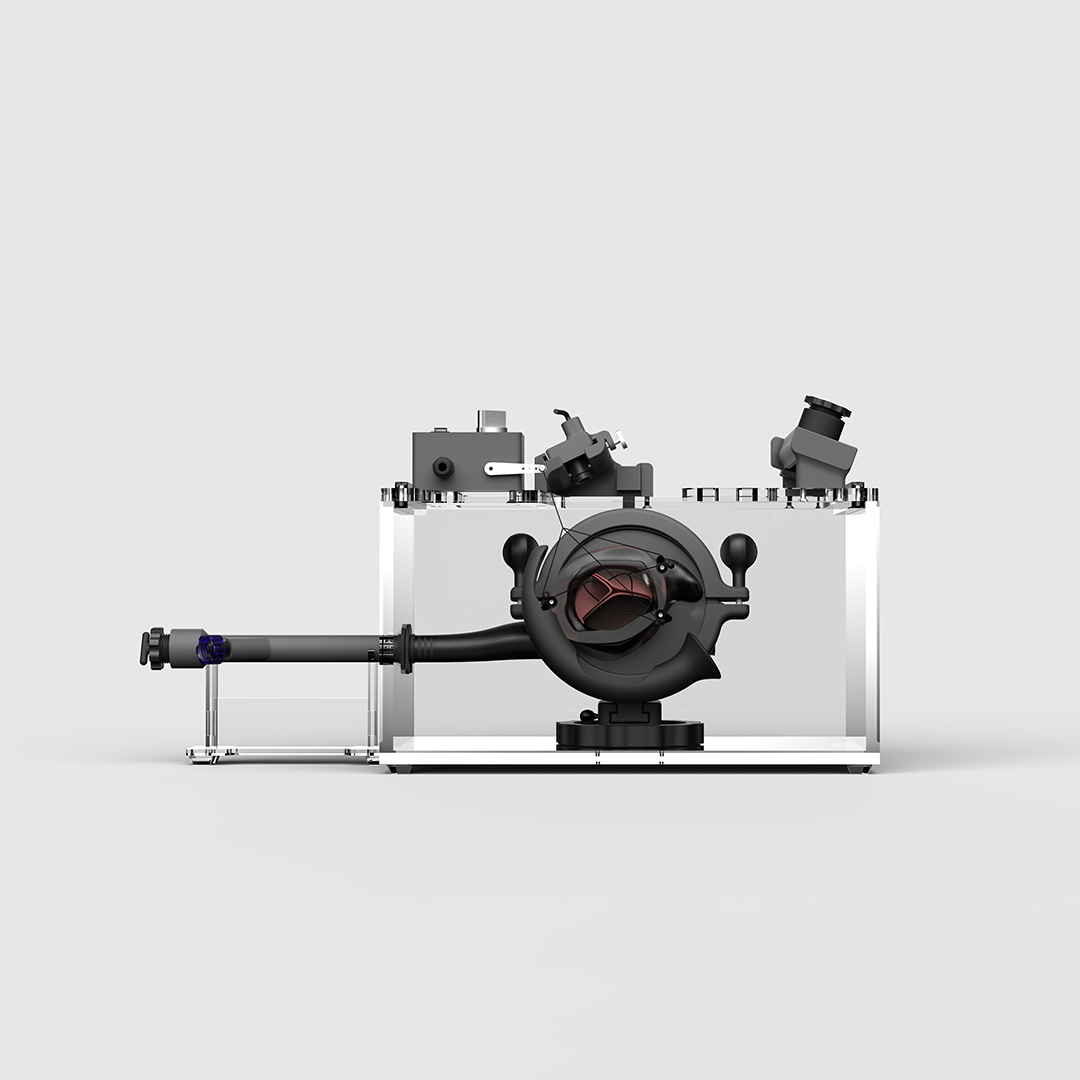

Overview
MAIN FEATURESSTRUCTURE
Focus
Procedure and imaging
Learn
Procedural imaging echo and flouro
Advanced anatomical landmarks
Delivery system and implant maneuvering in wet environment
Delivery system and device interaction with moving structures
Detailed procedural steps training
MAIN FEATURESSTRUCTURE
Rigid structures

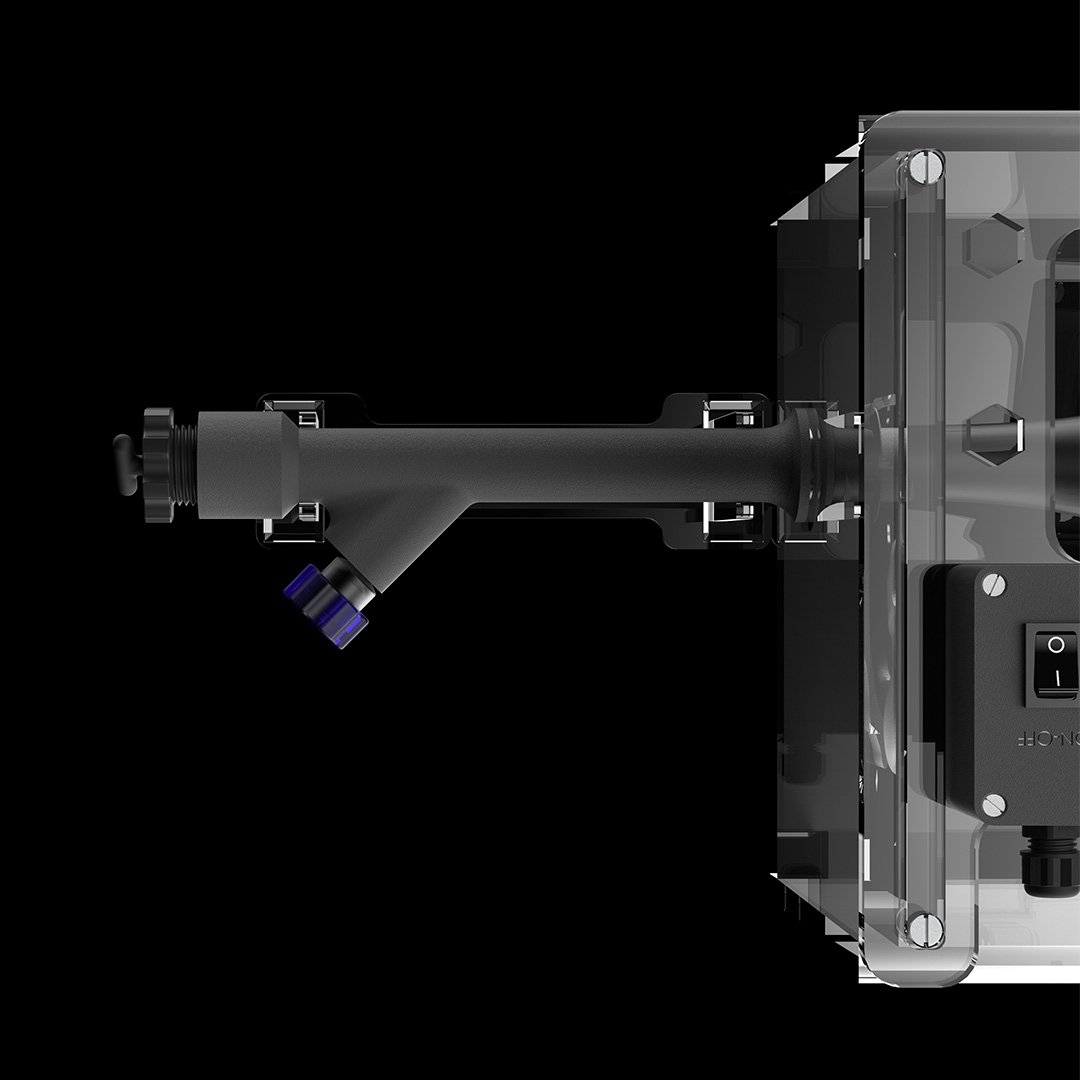

Femoral Transseptal access
Right atrium
Soft structures
Tricuspid Valve
Annulus and Chordae
Right atrial appendage
Right ventricle
Landmarks representing
Aortic Valve
Real imaging
DIRECT CAMERAS, ECHO, ICE and fluoro compatible
Direct cameras
Three video cameras replicating the full spectrum of main echo-like views. 1x tablet with split screens for visualization and recording.
1. 3D Ventricular
2.3D En-Face
3. Bicaval / RV Inflow
4. LAX Postero-Septal
5. Right Ventricle (RV)
6. Bicaval
7. Bicaval / En-Face
←
→
REAL TIME IMAGE TRAINING
Real-time imaging training with ultrasound systems visualizing the structures of interest and the device in a realistic anatomical setting. Customized imaging to suit you needs.
Standard right atrium size with dilatated annulus up to 44mm. Leaflet tetheting <10mm
Advanced
Adjustable, rotating base - allows angle change between IVC and Tricuspid annulus, increasing leaflet tetheting height to ≥ 10mm for challenging cases in unfavorable conditions

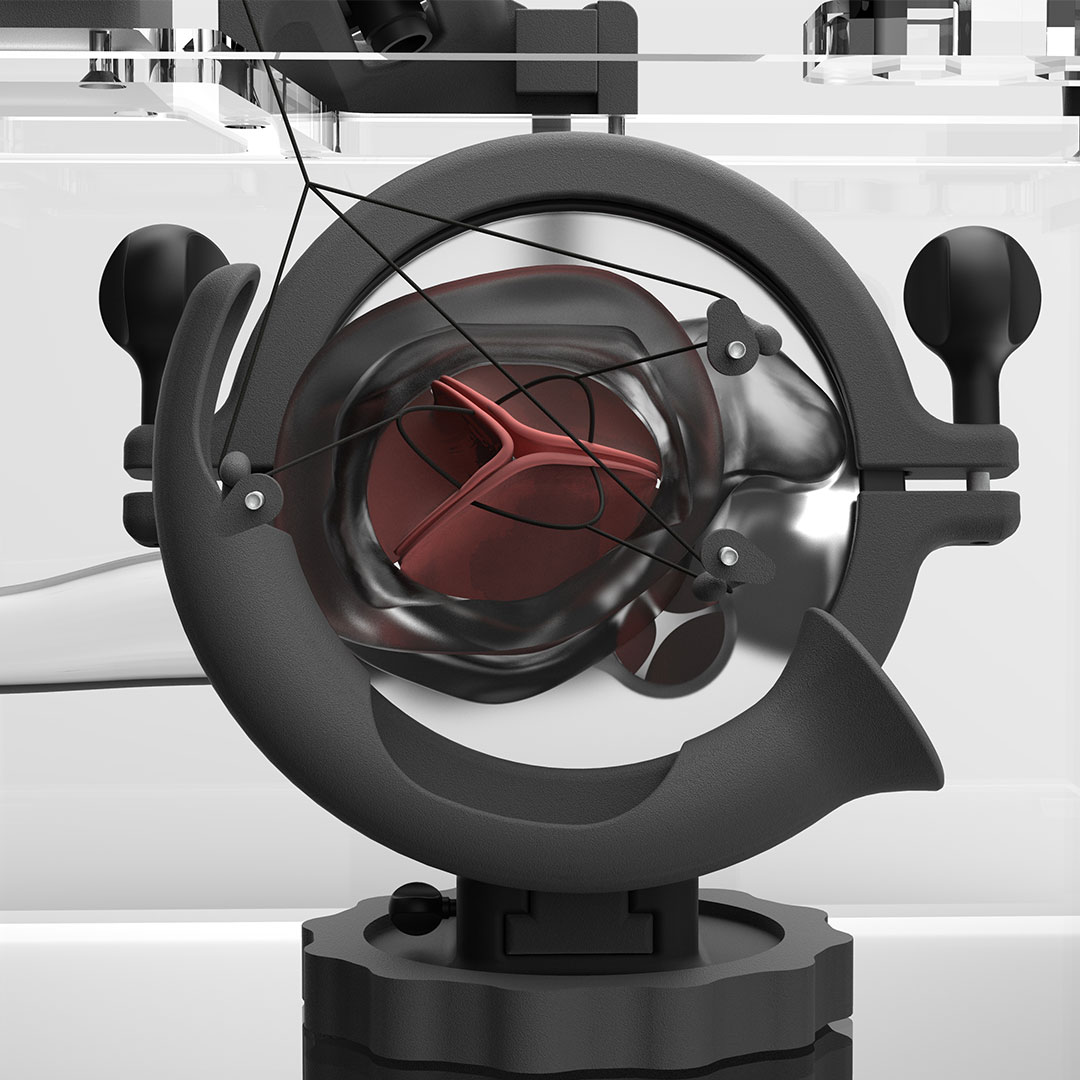

Technical
Features
Imaging capabilitiesEngineAquariumin the bagplug and play
Imaging capabilities
All components can be used in the cath lab under fluoroscopy
3x USB video cameras for multiple views
1x tablet with split screen capabilities for visualization and recording
Tunable transesophageal route with atrial and transgastric access
Dedicated transfemoral ICE probe access
Imaging capabilitiesEngineAquariumin the bagplug and play
Smart engine
For leaflet and annular movement. Adjustable heart rate
Imaging capabilitiesEngineAquariumin the bagplug and play
10L
Quick water fill container included
Imaging capabilitiesEngineAquariumin the bagplug and play
All fits into
Backpack
Weight
8kg
Dimension
50x40x22cm
Imaging capabilitiesEngineAquariumin the bagplug and play
No tools required
Full system setup ready in under 10 minutes. Just add warm water and it's ready for your device
Disposables
CUSTOMIZED PATIENT PROFILES and anatomies

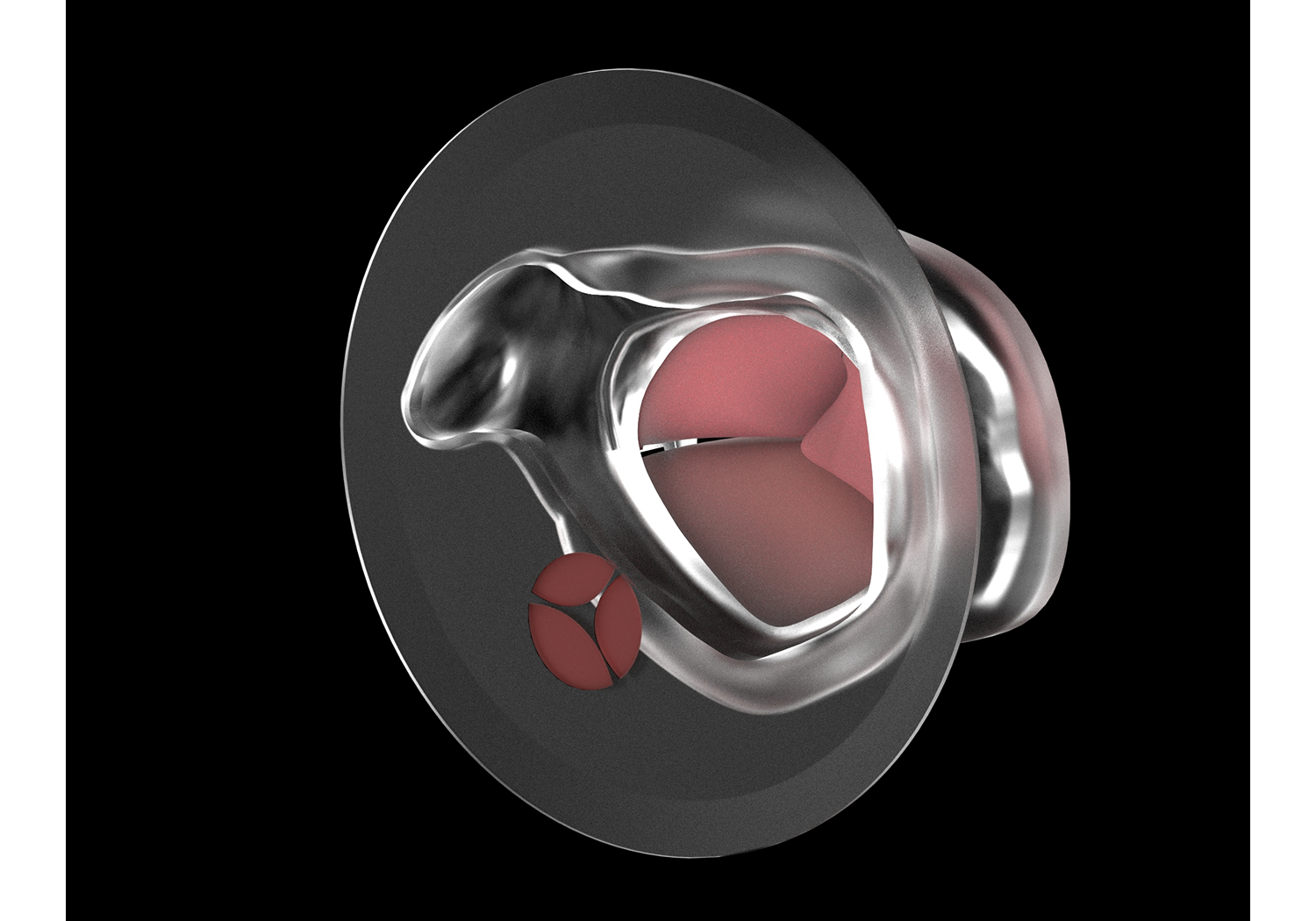

SLICE Tricuspid valve
Soft compliant valve molded for indicated pathology.
Mean diameter
57.3mm
SL diameter
64mm
Leaflet thickness
9mm
