PULSATILE PROCEDURAL HEART SIMULATOR FOR TRANSCATHETER LEFT ATRIAL APPENDAGE OCCLUSION
Procedural skills & imaging training. The simuSLICE pressure platform simulators offer pulsating movement of the targeted structure

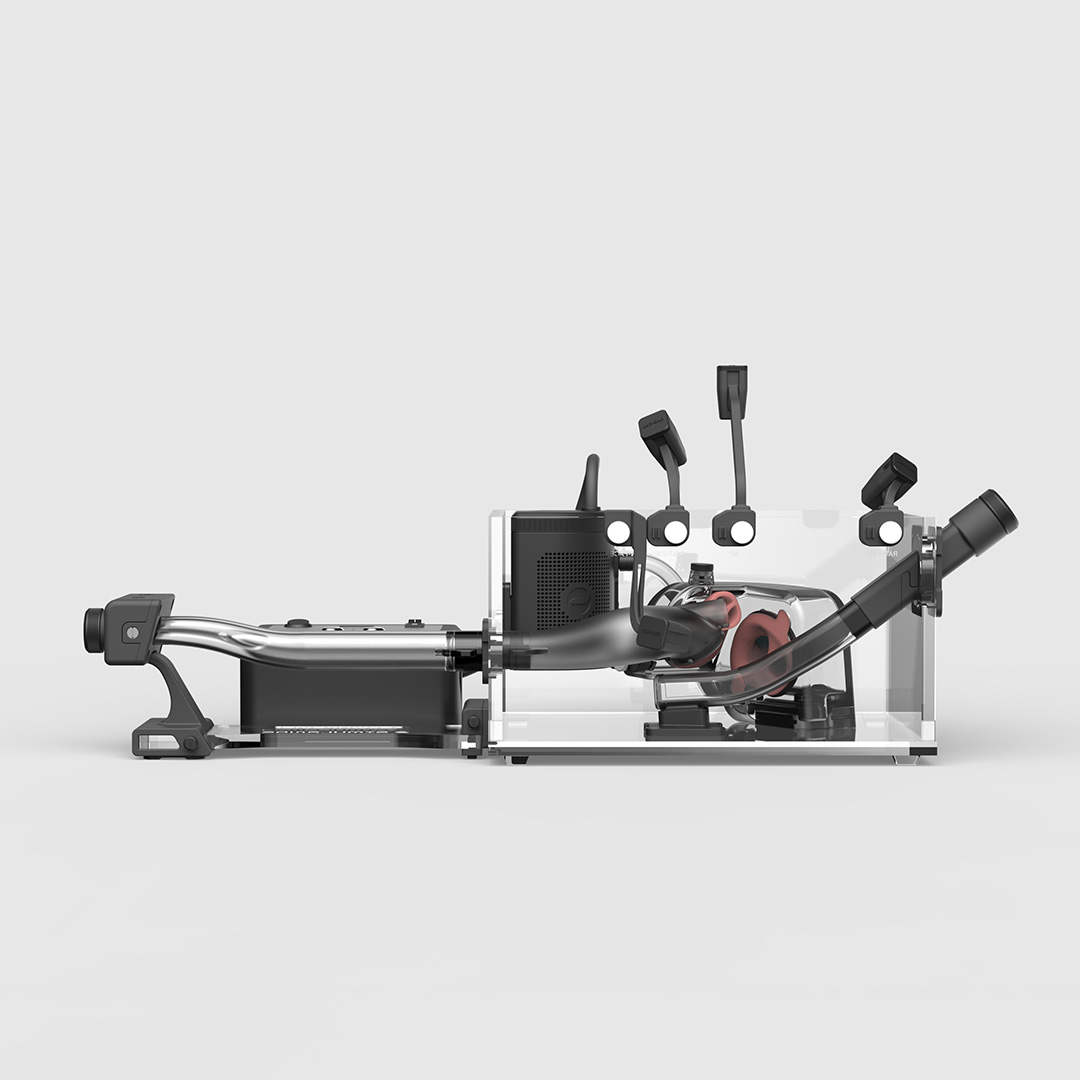

Overview
MAIN FEATURESSTRUCTURE
Focus
Procedure and imaging
Learn
Procedural imaging echo and flouro
Advanced anatomical landmarks
Delivery system and implant maneuvering in wet environment
Delivery system and device interaction with moving structures
Detailed procedural steps training
MAIN FEATURESSTRUCTURE
Rigid structures
Femoral transseptal access
ICE catheter access
Transesophageal access
Soft structures
Inferior Vena Cava, Right Atrium
Fossa Ovalis
Pulmonary Vein
Left Atrial Appendage
Mitral Valve
Landmarks representing
Aortic Valve
Real imaging
DIRECT CAMERAS & ECHO GUIDANCE

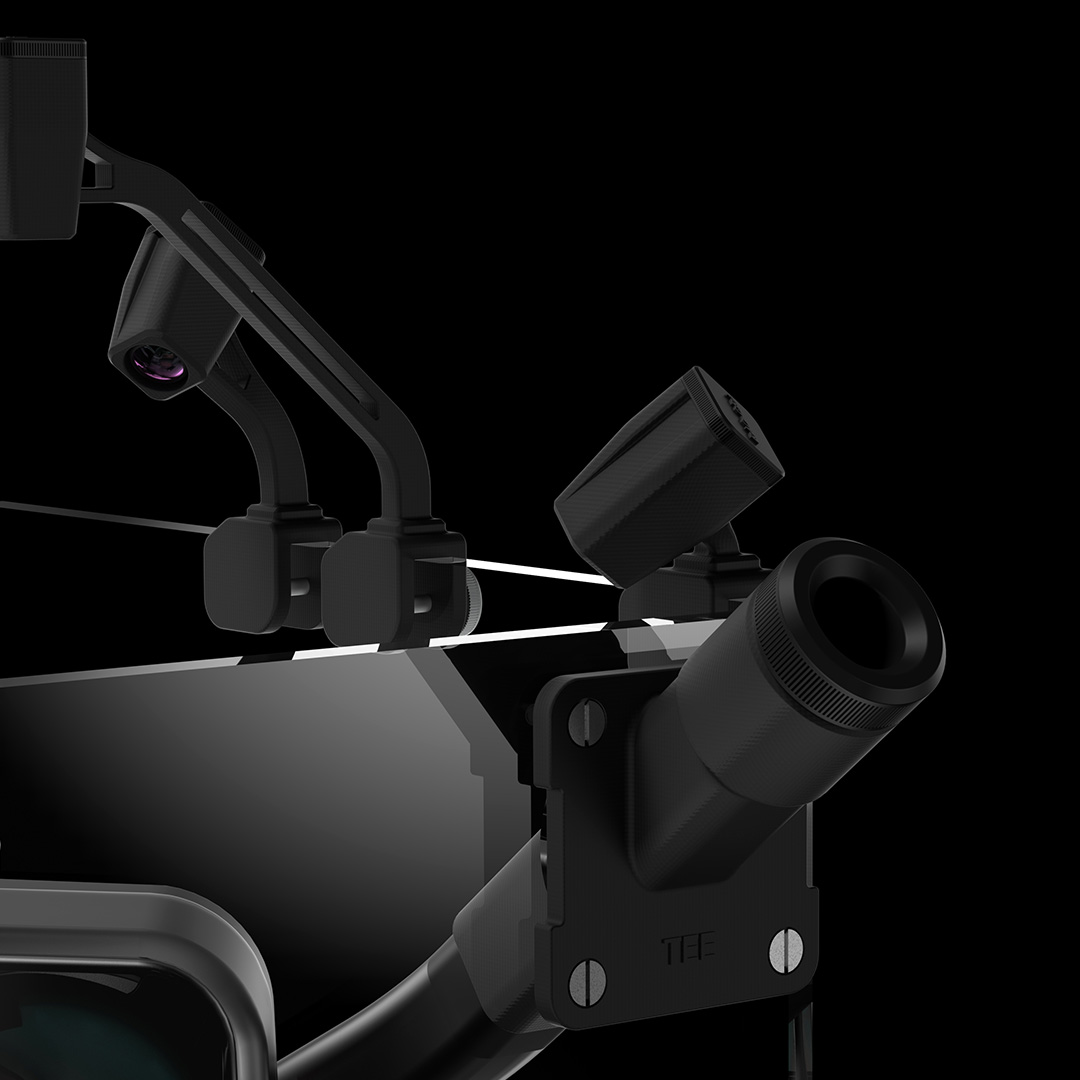

Direct cameras
Four video cameras replicating the full spectrum of main fluoroscopic and echocardiographic views. 1x tablet with split screens for visualization and training session recording.
1. RAO - CRA
2. AP
3. RAO - CAU
4. En-Face
←
→
REAL TIME IMAGE TRAINING
Real-time imaging training with ultrasound systems visualizing the structures of interest and the device in a realistic anatomical setting. Customized imaging to suit you needs.
Device-anatomy tactile interaction in wet environment with pulsatile LAA movement
Replicating Human Grade anatomy of interest: Inferior Vena Cava, Right Atrium, Fossa Ovalis, Pulmonary Vein, Left Atrial Appendage structure and Mitral Valve
Based on real patients CT, MRI and 3D echo datasets
Challenging procedure maneuvering with pre-punctured Fossa Ovalis
Anatomies
Exchangeable challenging LAA anatomies

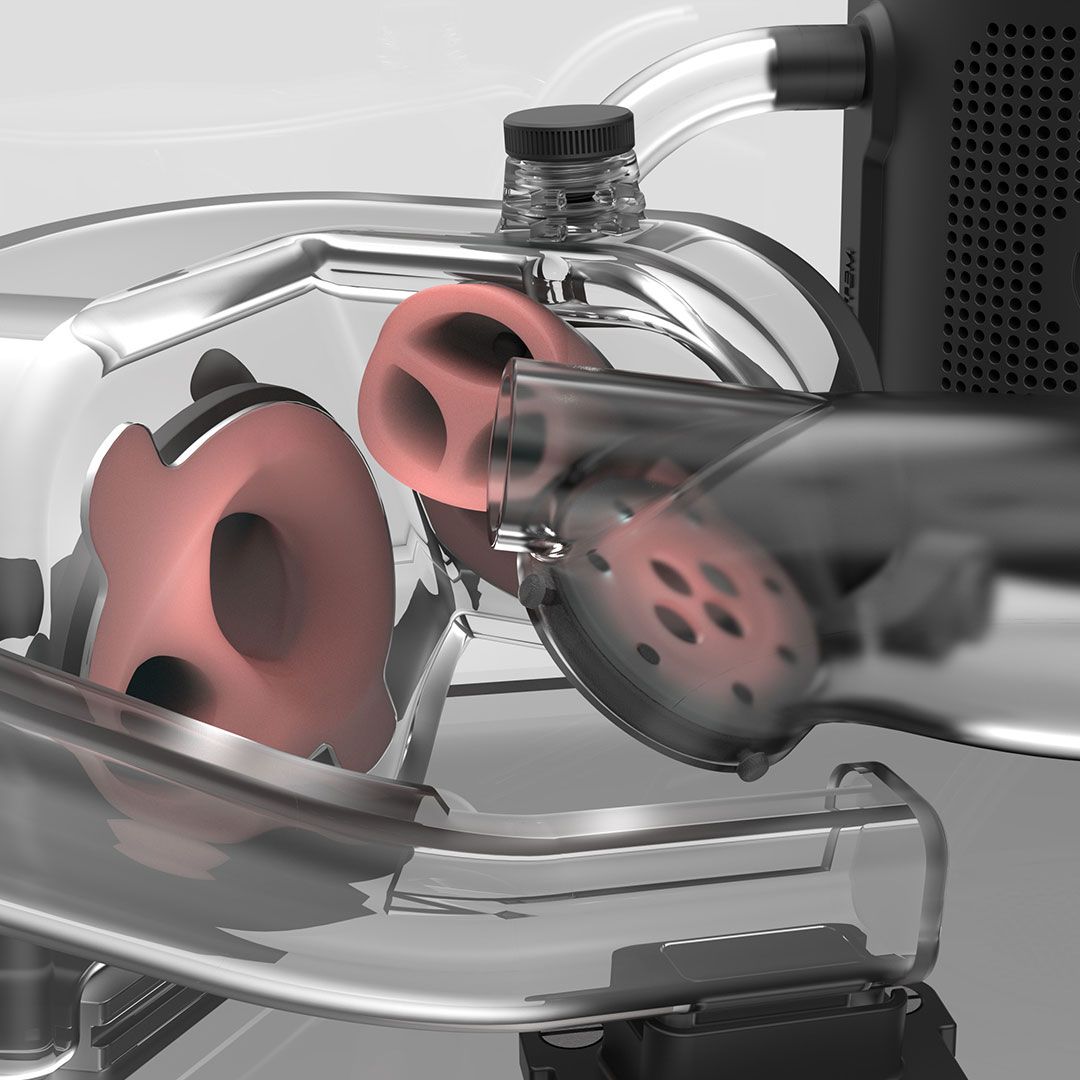

Technical
Features
Pulsatile systemImaging capabilitiesAquariumpowersetupin the bagplug and play
Pulsatile
Pulsatile portable pump system for realistic LAA movement
Self-adjustable body temperature control (36.7°C)
Adjustable heart rate between 40-80BPM
Atrial fibrillation mode
Adjustable pulsatile intensity
Pulsatile systemImaging capabilitiesAquariumpowersetupin the bagplug and play
Imaging capabilities
All components can be used in the cath lab under fluoroscopy
Four video cameras
1x miniPC with split screen capabilities for visualization and recording
Transesophageal access route and realistic esophagus
Pulsatile systemImaging capabilitiesAquariumpowersetupin the bagplug and play
10L
Quick water fill container included
Pulsatile systemImaging capabilitiesAquariumpowersetupin the bagplug and play
Power system
12V powered system with socket for various power cables and plugs
Worldwide compatible with voltage from 90 to 264V at a frequency from 47 to 63Hz
Pulsatile systemImaging capabilitiesAquariumpowersetupin the bagplug and play
Setup info
Electronic IFU documentation with detailed video user training and guide for simple assembly
Pulsatile systemImaging capabilitiesAquariumpowersetupin the bagplug and play
All fits into
Backpack
Weight
8kg
Dimension
50x40x22cm
Pulsatile systemImaging capabilitiesAquariumpowersetupin the bagplug and play
No tools required
Full system setup ready in under 10 minutes. Just add warm water and it's ready for your device
Disposables

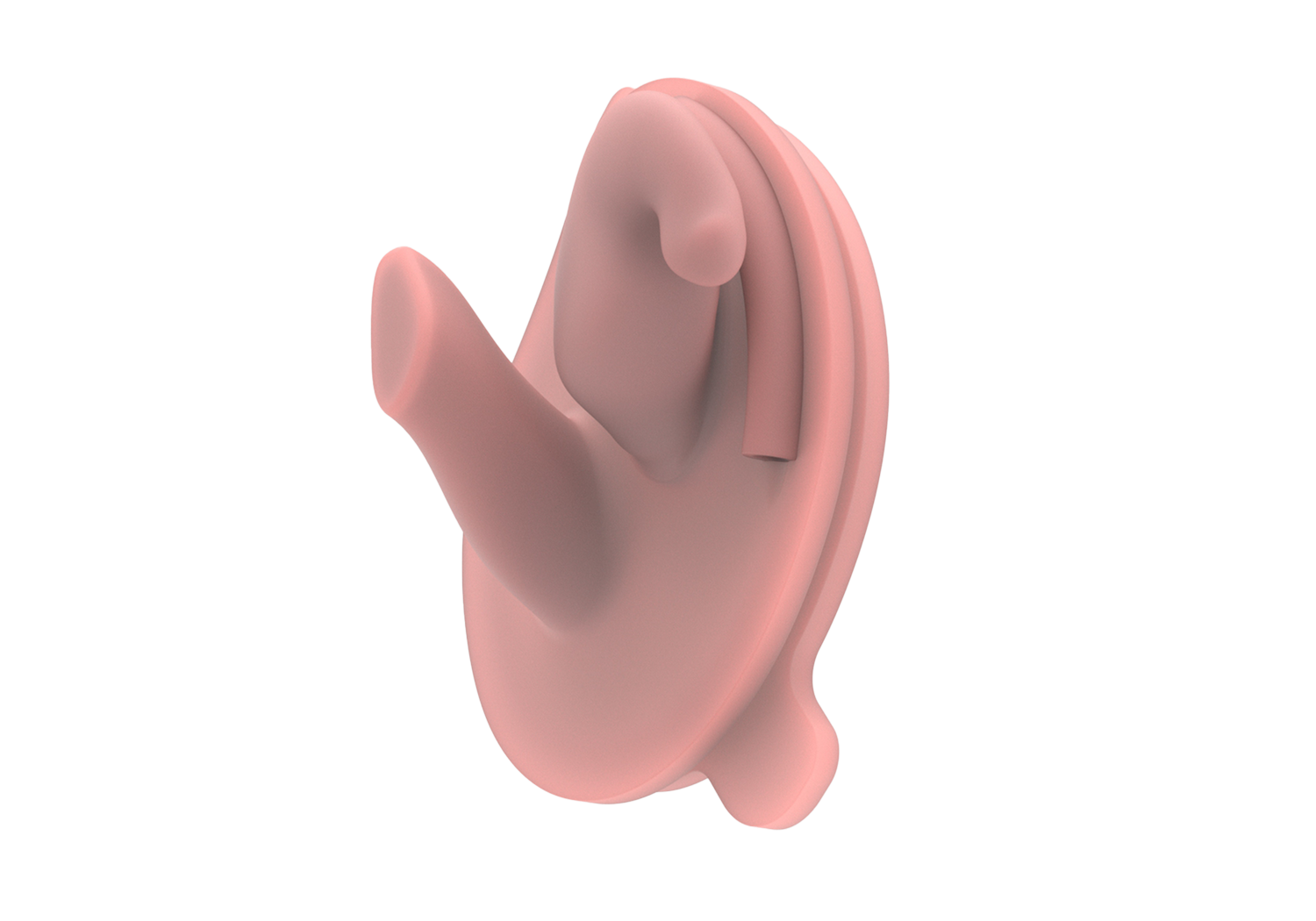

CUSTOMIZED PATIENT PROFILES and anatomies
SLICE LAA Broccoli
High-fidelity Left Atrial Appendage anatomies with Pulmonary Vein for Human Grade implant experience
CC Landing zone max diameter
29mm
Ostium mean diameter
31mm
Depth
30mm
SLICE LAA Multilobular
High-fidelity Left Atrial Appendage anatomies with Pulmonary Vein for Human Grade implant experience
CC Landing zone max diameter
20mm
Ostium mean diameter
20mm
Depth
24mm
SLICE LAA Windsock
High-fidelity Left Atrial Appendage anatomies with Pulmonary Vein for Human Grade implant experience
CC Landing zone max diameter
18mm
Ostium mean diameter
26mm
Depth
15mm
SLICE LAA Chicken Wing
High-fidelity Left Atrial Appendage anatomies with Pulmonary Vein for Human Grade implant experience
CC Landing zone max diameter
34mm
Ostium mean diameter
34mm
Depth
19mm
Fossa Ovalis Pre-Punctured
Four scenarios for steerable catheter navigation training
Min diameter
22mm
Max diameter
33mm
Holes diameter
6mm
Fossa Ovalis Physiological
For full transeptal puncture experience
Min diameter
22mm
Max diameter
33mm
Holes diameter
-
