BEATING HEART SIMULATOR FOR TRANSCATHETER AORTIC VALVE REPLACEMENT
Advanced skills & patient like training. SimuPULSE platform simulators have full pulsatile movement and flow
Overview
MAIN FEATURESSTRUCTURE
Focus
Patient and procedural outcome
Learn
Outcomes driven implantation with flow and regurgitation
Advanced procedural imaging protocol
Tips and tricks
MAIN FEATURESSTRUCTURE
Rigid structures
Aortic Arch with carotid and subclavian Arteries access
Rigid Ventricle
Soft structures
Femoral access - left & right
Descending Aorta
Aortic Vale Apparatus
Real imaging
DIRECT CAMERAS & FLUOROSCOPIC GUIDANCE
Direct cameras
Up to four video cameras replicating the full spectrum of the main fluoroscopic and echocardiographic views. 1x miniPC and screen for split visualization and training session recording.
1. Lateral
2. Left Ventricular Outflow Tract (LVOT)
←
→
REAL TIME IMAGE TRAINING
Real-time imaging training with ultrasound systems or fluoroscopy visualizing the structures of interest and the device in a realistic anatomical setting. Customized imaging to suit your needs.
Complete anatomical representation, Human Grade and tissue like tactile interaction along the entire implantation pathway. Designed to generate pressure gradient through the Aortic Valve to allow realistic behavior of the device. Based on real patients CT, MRI and 3D echo datasets
Proprietary materials enhance the pulsating physiological behavior of the Aortic Valve. The leaflets treated to be visible under fluoroscopy. 'Friction-less' coating allows smooth introduction and interaction of the device with the components
Challenging Aortic Valve anatomies and pathologies
Technical
Features
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
Pulsatile system
Pulsatile portable pump system for hemodynamic heart valve motion
Self-adjustable body temperature control (36.7°C)
Adjustable heart rate between 40-80BPM
Rapid pacing activation mode at constant 120BPM
Adjustable pulsatile intensity with 3-setting
Adjustable after-load pressure by rail on aquarium
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
Imaging capabilities
All components can be used in the cath lab under fluoroscopy
2x USB waterproof endoscopic cameras for en-face and lateral view visualization
1x tablet with split screen capabilities for visualization, recording and and remote training
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
10L
Quick water fill container included
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
Power system
12V powered system with socket for various power cables and plugs
Worldwide compatible with voltage from 90 to 264V at a frequency from 47 to 63Hz
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
Setup info
Electronic IFU documentation with detailed video user training and guide for simple assembly
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
All fits into
Backpack
Weight
14kg
Dimension
50x40x22cm
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
No tools required
Full system setup ready in under 15 minutes.Just add warm water and it's ready for your device
Disposables
CUSTOMIZED PATIENT PROFILES and anatomies

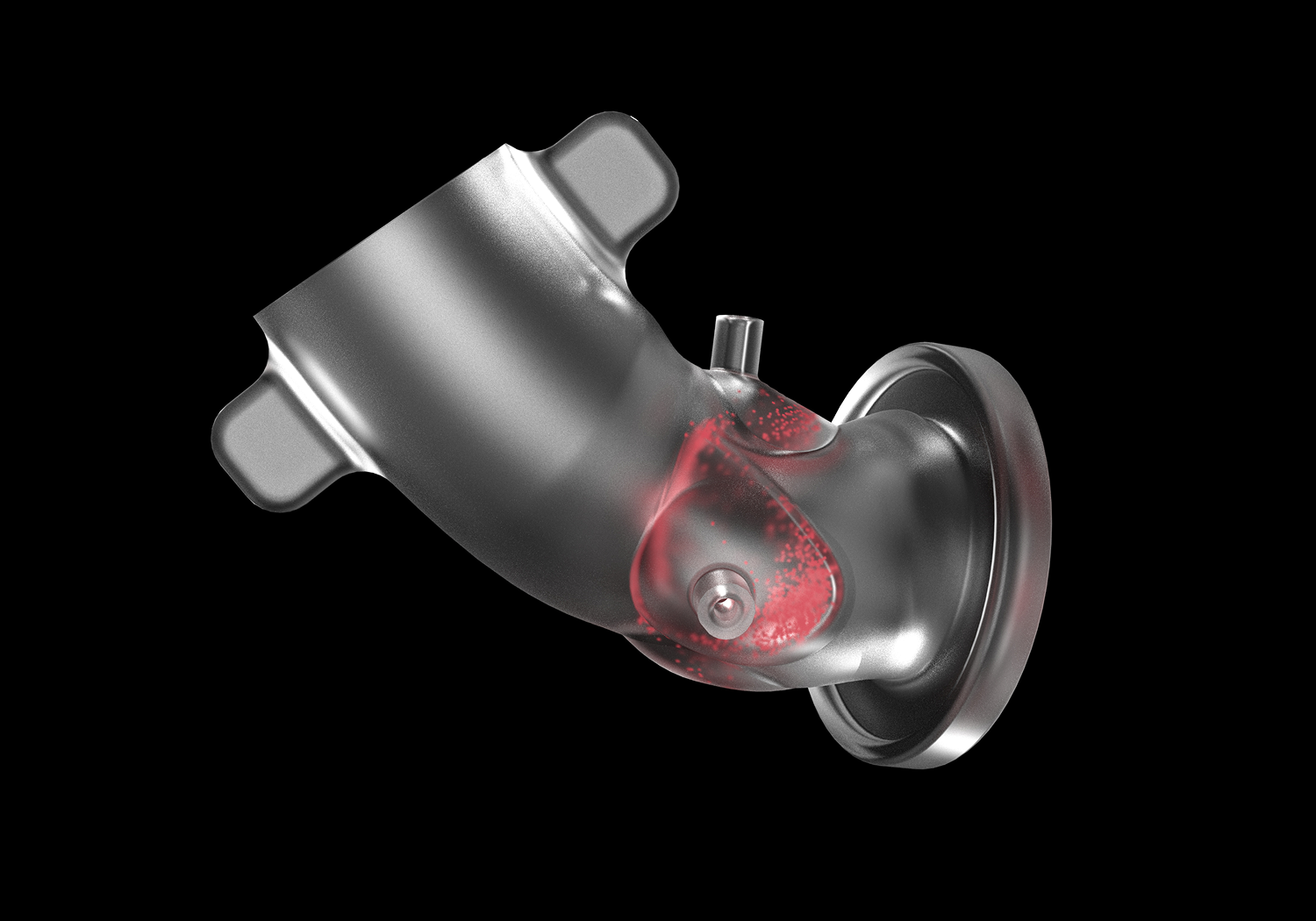

PULSE Aortic valve S
Aortic Valve disposable created from a small patient profile and with regular calcification.
Size
Small
Perimeter
76mm
Area
460mm²
PULSE Aortic valve L
Aortic Valve disposable created from a Large patient profile and with regular calcification.
Size
Large
Perimeter
86mm
Septal-lateral diameter
581mm²
PULSE Aortic valve H
Aortic Valve disposable created from a Large patient profile and with high calcification.
Calcification
High
Perimeter
86mm
Area
582mm²
PULSE Aortic valve B
Aortic Valve disposable created from a bicuspid patient profile and with regular calcification.
Valve
Bicuspid
Perimeter
86mm
Area
574mm²
