PULSATILE SIMULATOR
FOR FEMORAL VASCULAR ACCESS AND CLOSURE
Advanced skills & patient like training. SimuPULSE platform simulators have full pulsatile movement and flow

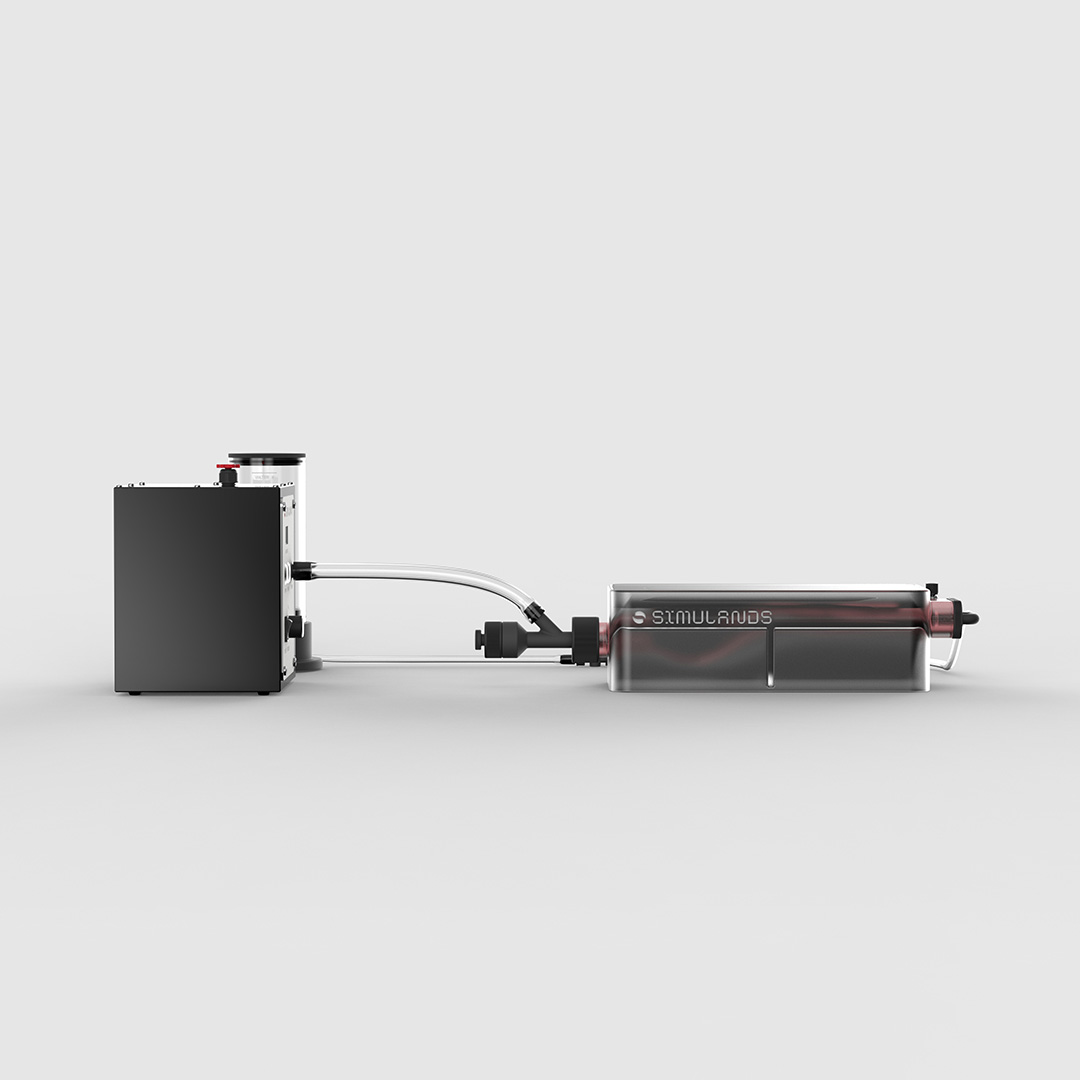

Overview
MAIN FEATURESSTRUCTURE
Focus
Patient and procedural outcome
Learn
Outcomes driven implantation with flow and regurgitation
Advanced procedural imaging protocol
Tips and tricks
MAIN FEATURESSTRUCTURE
Soft structures
Femoral Vein
Femoral Artery
Skin and connective tissue
Real imaging
DIRECT CAMERAS & FLUOROSCOPIC GUIDANCE
Direct cameras
One endoscopic camera for visualization from inside the vessel. 1x miniPC and screen for visualization and training session recording.
1. Endoscopic camera view inside the vessel to visualize puncturing site and calcification
←
→
REAL TIME IMAGE TRAINING
Real-time imaging training with ultrasound systems visualizing the structures of interest and the device in a realistic anatomical setting. Customized imaging to suit your needs.

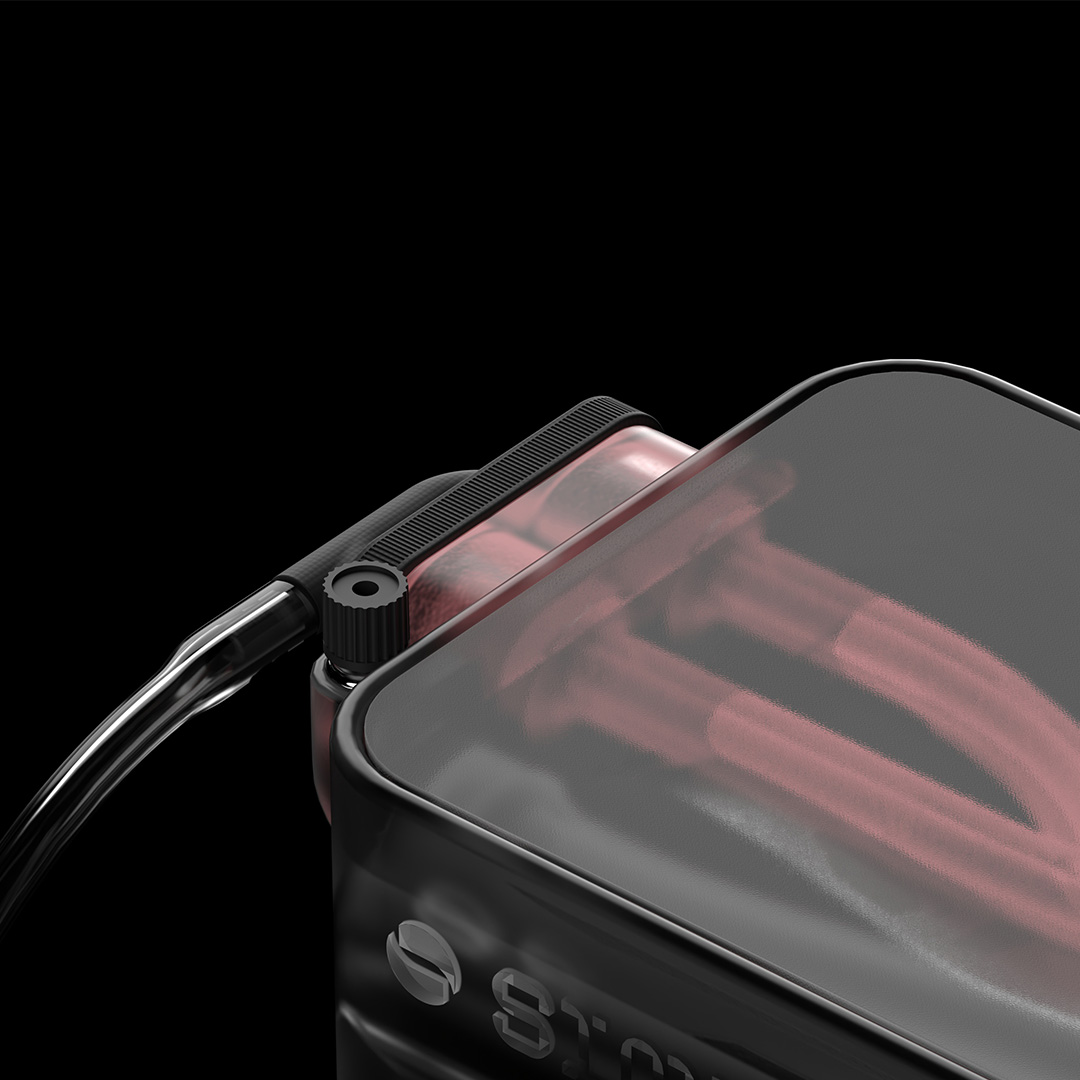

Complete anatomical representation, Human Grade and tissue like tactile interaction along the entire implantation pathway. Designed to generate pressure and bleeding to replicate realistic behavior and interaction with the device. Based on real patients' CT datasets
Challenging Femoral Artery anatomies with anterior and posterior calcification

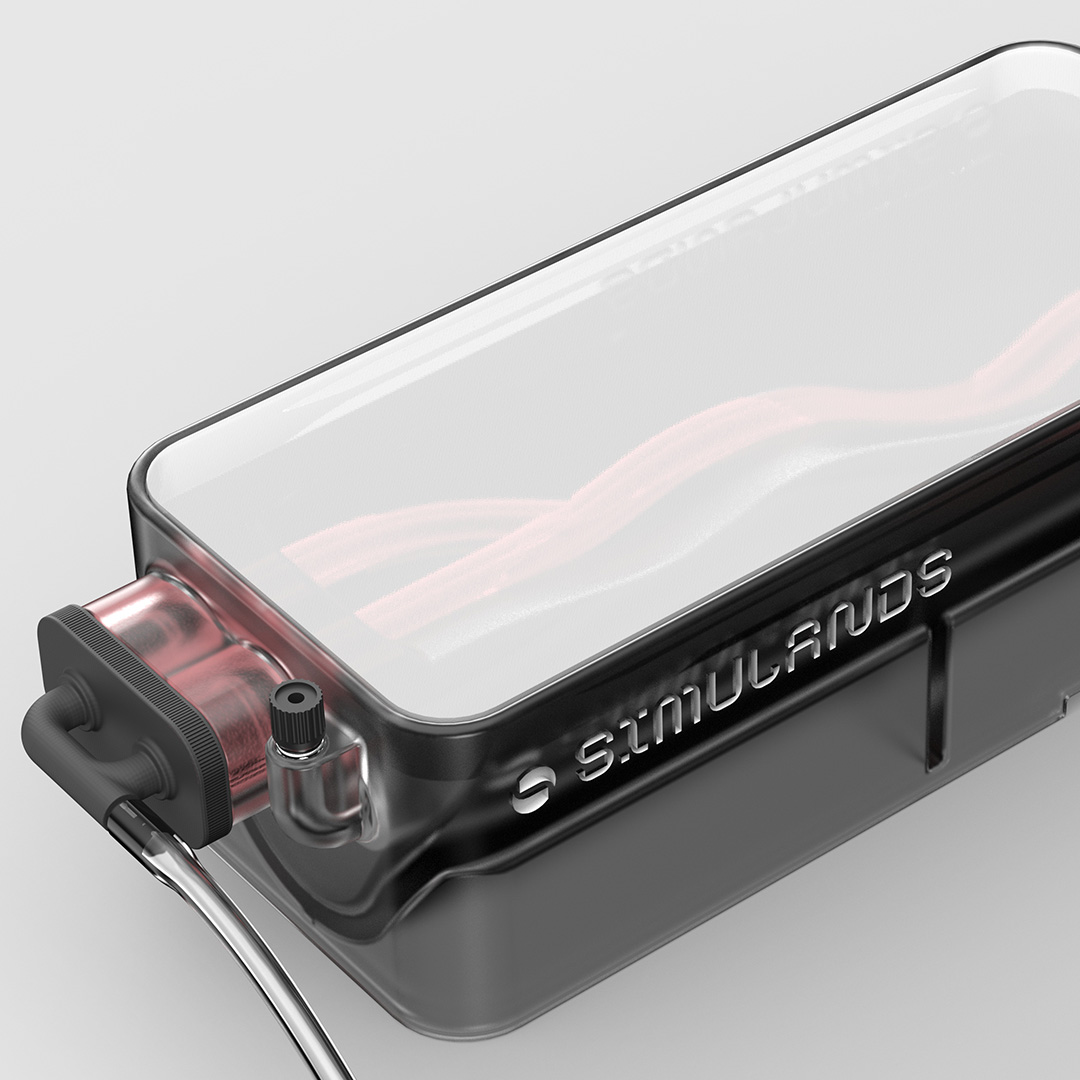

Technical
Features
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
Pulsatile system
Portable pulsatile system
Designed to generate pressure in the required anatomy to allow realistic behavior of the device and implantation
Simulating Vessel bleeding at systolic and diastolic pressure
Heart rate control [40-80bpm]
Adjustable pulsatile intensity (low, medium, high)
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
Imaging capabilities
Enhanced vessel echogenicity for realistic and Human Grade puncture experience
The endoscopic camera is placed in the vein lumen for unique visualization of the procedure
1x miniPC with screen capabilities for visualization and recording
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
1L
Quick water fill container included
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
Power system
12V powered system with socket for various power cables and plugs
Worldwide compatible with voltage from 90 to 264V at a frequency from 47 to 63Hz
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
Setup info
Electronic IFU documentation with detailed video user training and guide for simple assembly
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
All fits into
Protective luggage with wheels for easy travel, plug & play
Weight
Total simulator weight including protective luggage: 18kg
Dimension
59x47x42cm
Pulsatile systemImaging capabilitiesAquariumpowersetupeasy travelplug and play
No tools required
Full system setup ready in under 5 minutes. Just add water and it's ready for your device

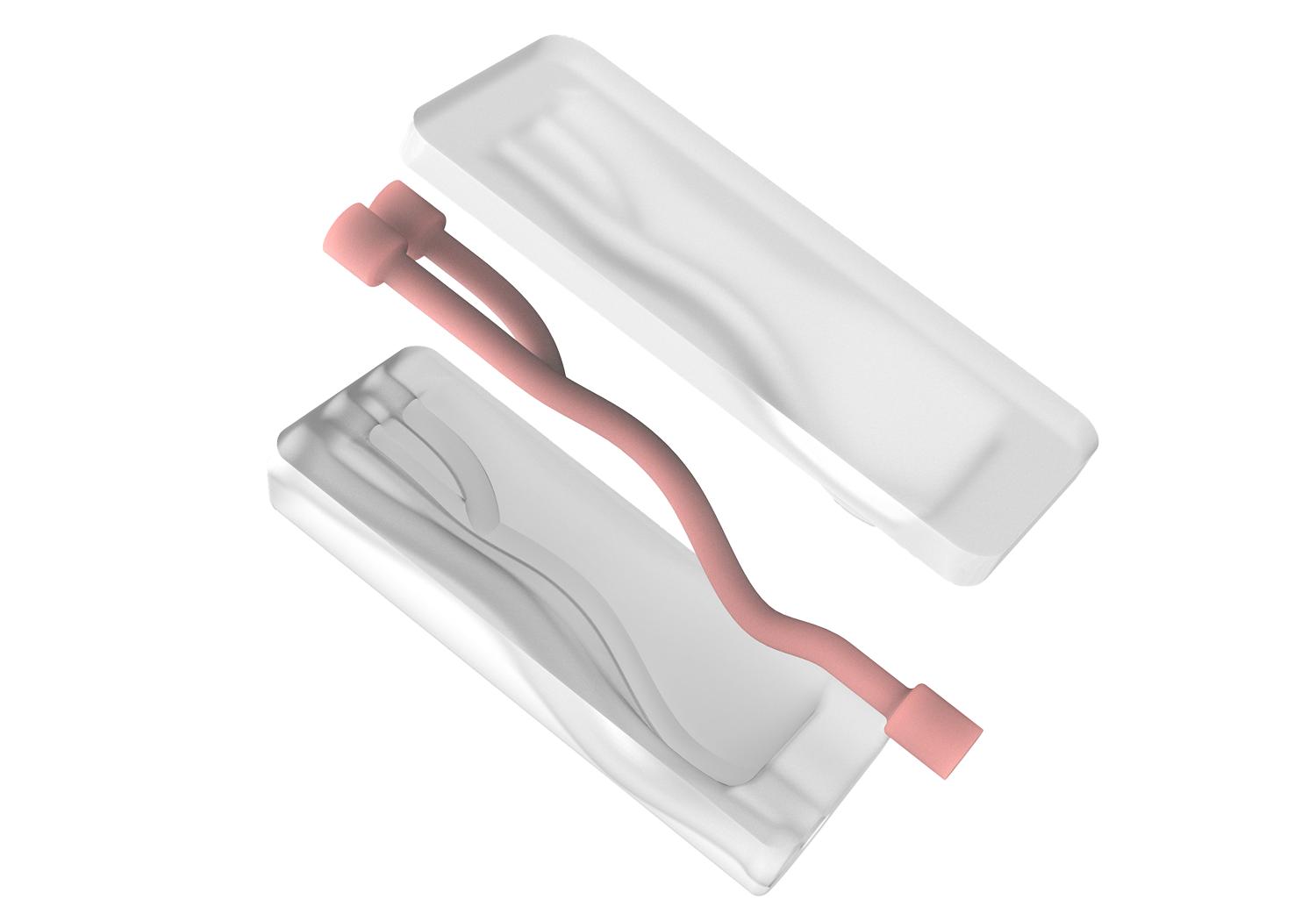

Disposables
CUSTOMIZED PATIENT PROFILES and anatomies
1. Skin & Connective Tissue
High-fidelity hydrogel-based material that provides tactile interaction along the entire implantation pathway.
2. Femoral Artery Disposables
Different disposables with a mix of patient scenarios.
3. Connective Tissue with Vein
Hydrogel-based material to replicate the human tissue with a Vein.
ARTERY DISPOSABLES CASE A
Femoral Artery with a constant vessel diameter of 8mm with standard tortuosity replicating the access of an ideal patient. Absence of any calcification or irregularity inside the disposable.
Vessel diameter
8mm
Calcification
Absence
ARTERY DISPOSABLES CASE B
Femoral Artery with a maximal vessel diameter of 8mm with standard tortuosity. Posterior moderate calcification pattern based on CT scan dataset, reducing the vessel diameter to a minimum of 6.5mm in specific segments.
Max. vessel diameter
8mm
Min. vessel diameter
6.5mm
Calcification
Posterior moderate
ARTERY DISPOSABLES CASE C
Femoral Artery with a maximal vessel diameter of 8mm with standard tortuosity. Anterior moderate calcification pattern based on CT scan dataset, reducing the vessel diameter to a minimum of 6.5mm in specific segments.
Min. vessel diameter
8mm
Max. vessel diameter
6.5mm
Calcification
Anterior moderate
